From 100 KB to 2.5 TB: What It Really Takes to Run an AI Model

The one formula behind every AI model's size#

To estimate how much memory an AI model needs, multiply its parameter count by the bytes per parameter. At 16-bit, each parameter is 2 bytes, so a 70B model needs about 140 GB. At 4-bit, it is half a byte, so the same model needs about 35 GB.

That is the whole trick. A model is a big pile of learned numbers called parameters (or weights). "70B" means 70 billion of them. Each one has to sit in memory while the model runs, and how much space each one takes depends on its precision: how many bits you spend storing it.

Models are usually trained at 16-bit. Squeezing them down to 8 or 4 bits after training is called quantization, and it is the single biggest reason big models now run on small machines. You trade a little accuracy for a lot of memory.

Here is the formula applied to the models we will meet on the way up:

model                   fp16        int8        int4
Wake-word net       100.0 KB     50.0 KB     25.0 KB
Llama 3 8B           16.0 GB      8.0 GB      4.0 GB
Llama 3 70B         140.0 GB     70.0 GB     35.0 GB
Llama 3.1 405B      810.0 GB    405.0 GB    202.5 GB
DeepSeek-V3           1.3 TB    671.0 GB    335.5 GB
Kimi K2               2.0 TB      1.0 TB    500.0 GB

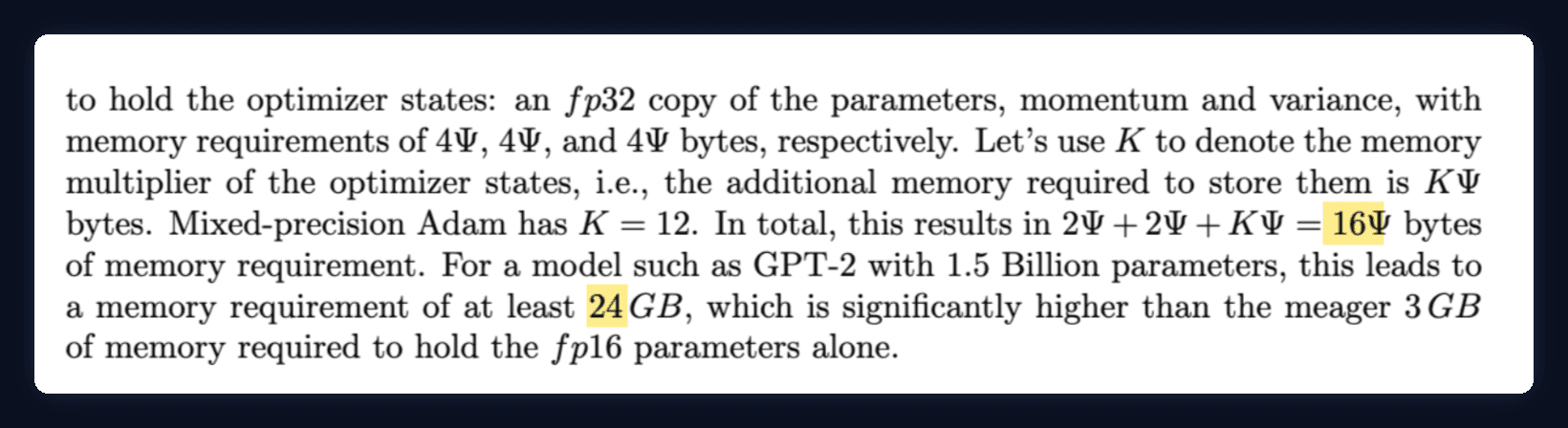

Training Llama 3 70B with Adam: 1.1 TB before activations

Now let us start at the bottom of the ladder, where there are no gigabytes at all.

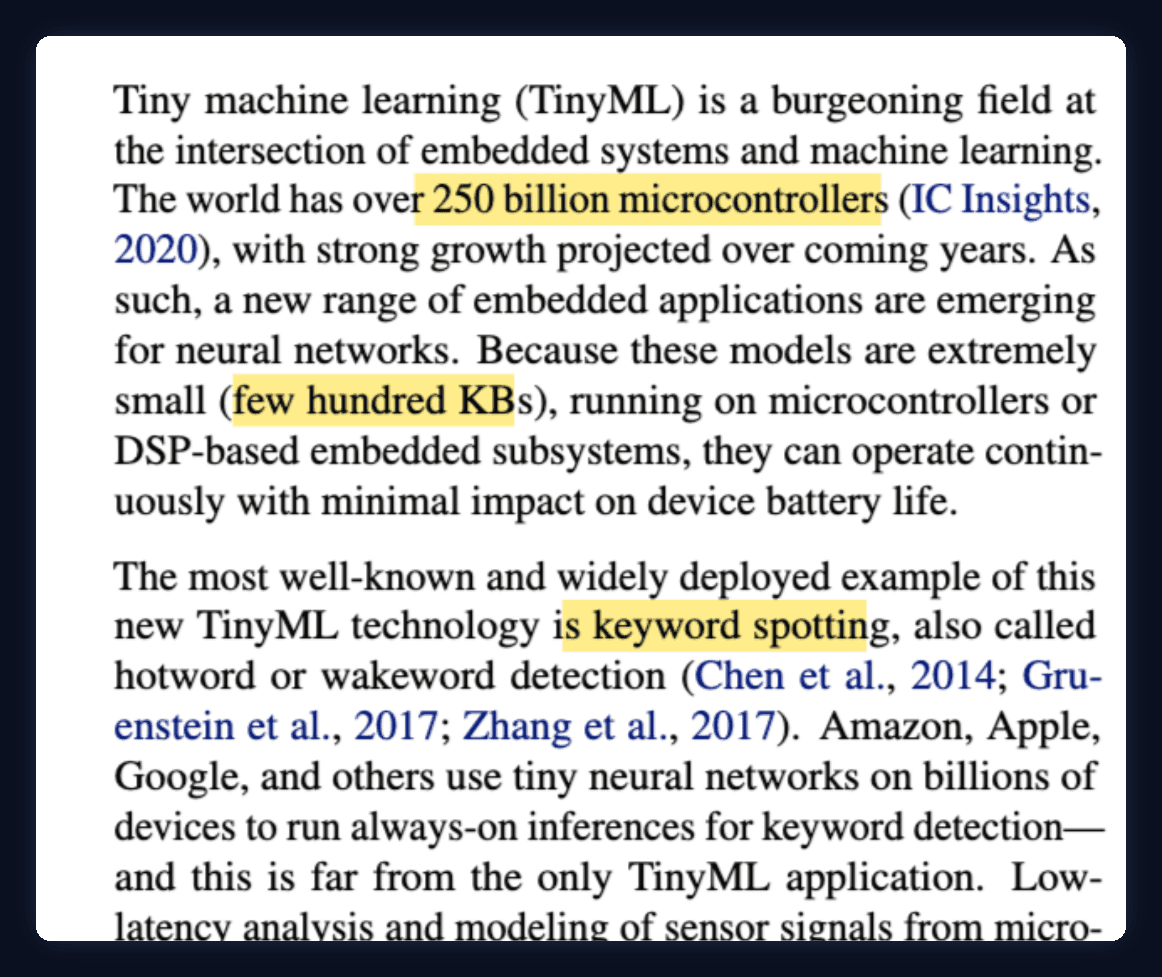

The smallest models run on microcontrollers: the tiny chips inside thermostats, earbuds and factory sensors. There is no operating system to speak of, and no gigabytes anywhere. A microcontroller has a little on-chip working memory called SRAM, a few hundred kilobytes, plus a few megabytes of flash storage.

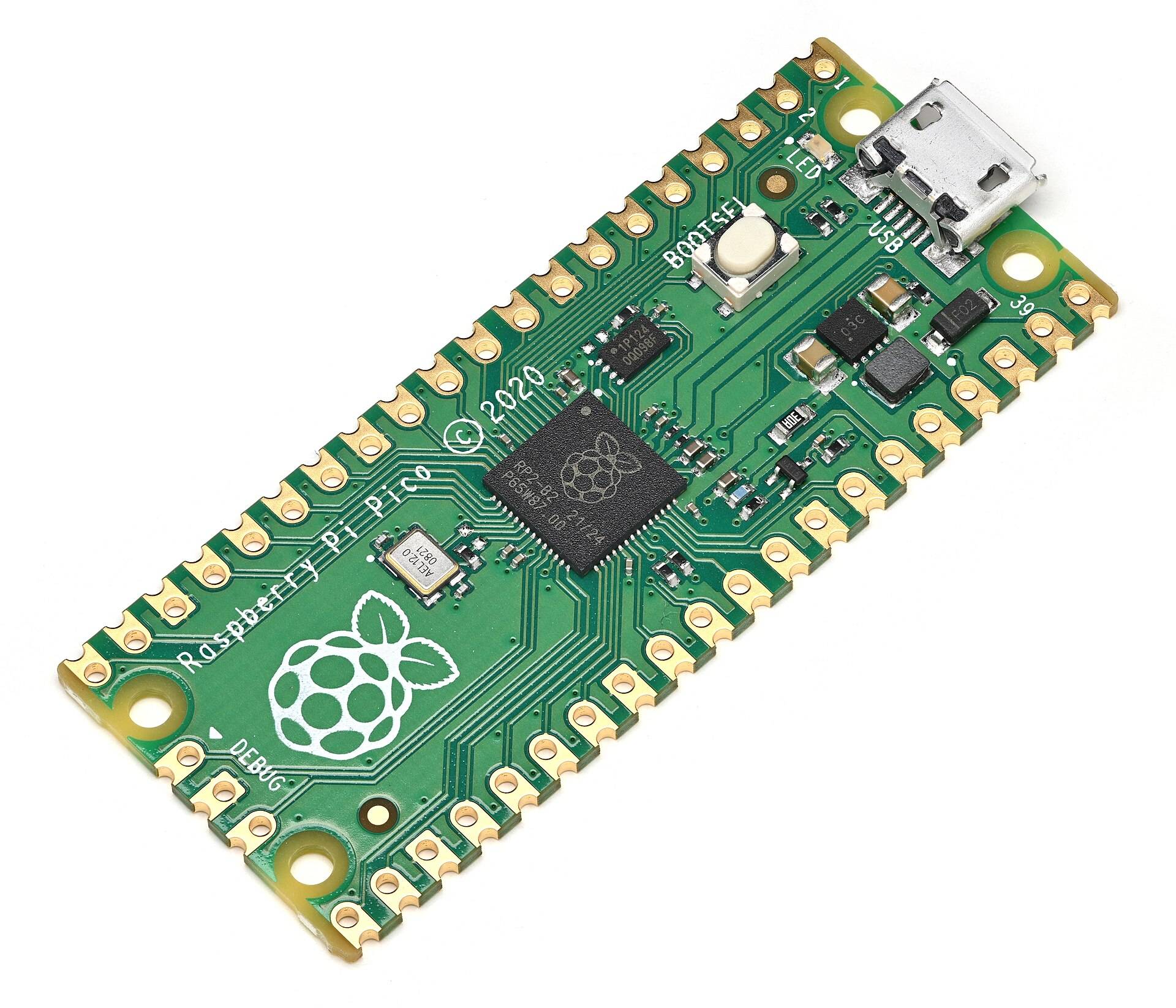

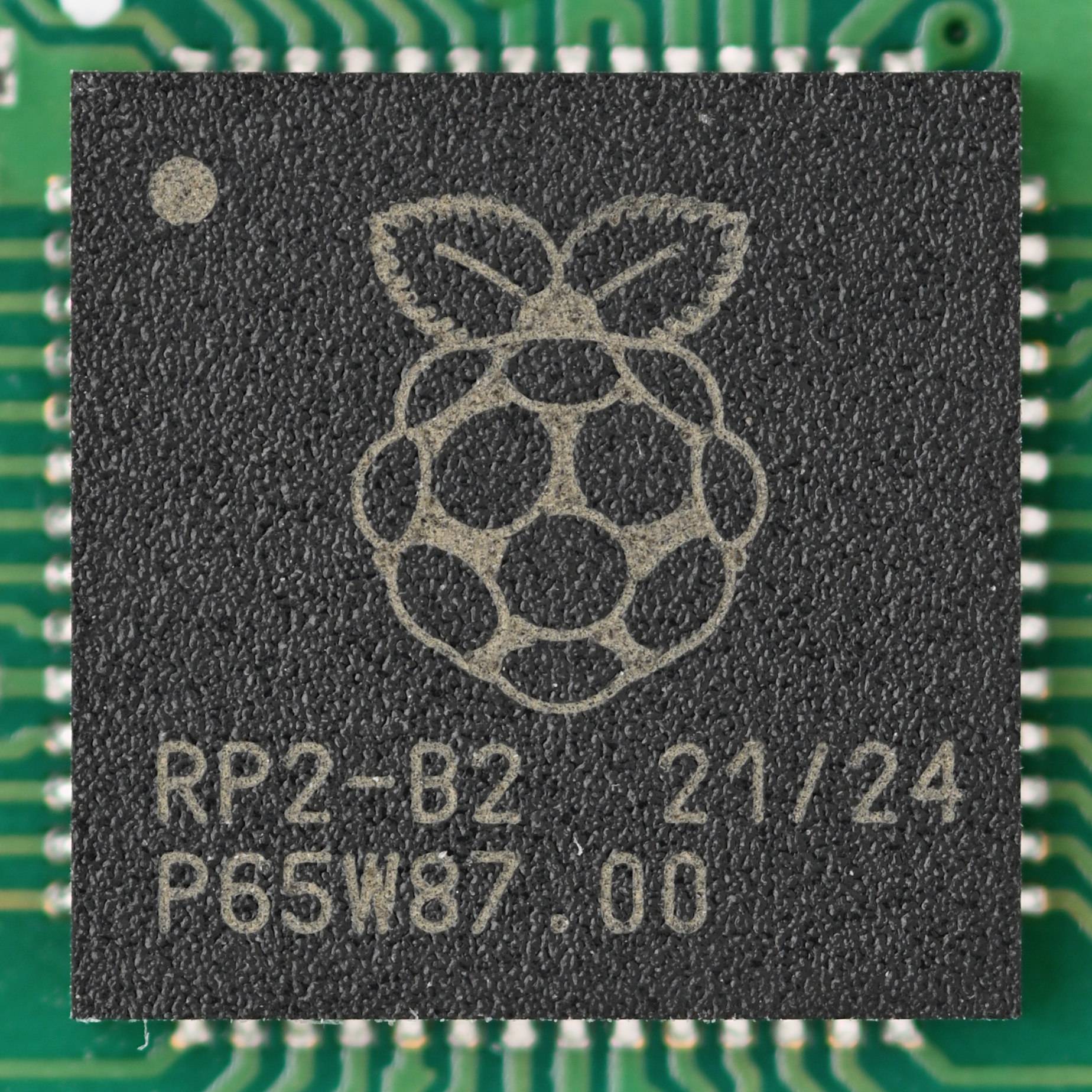

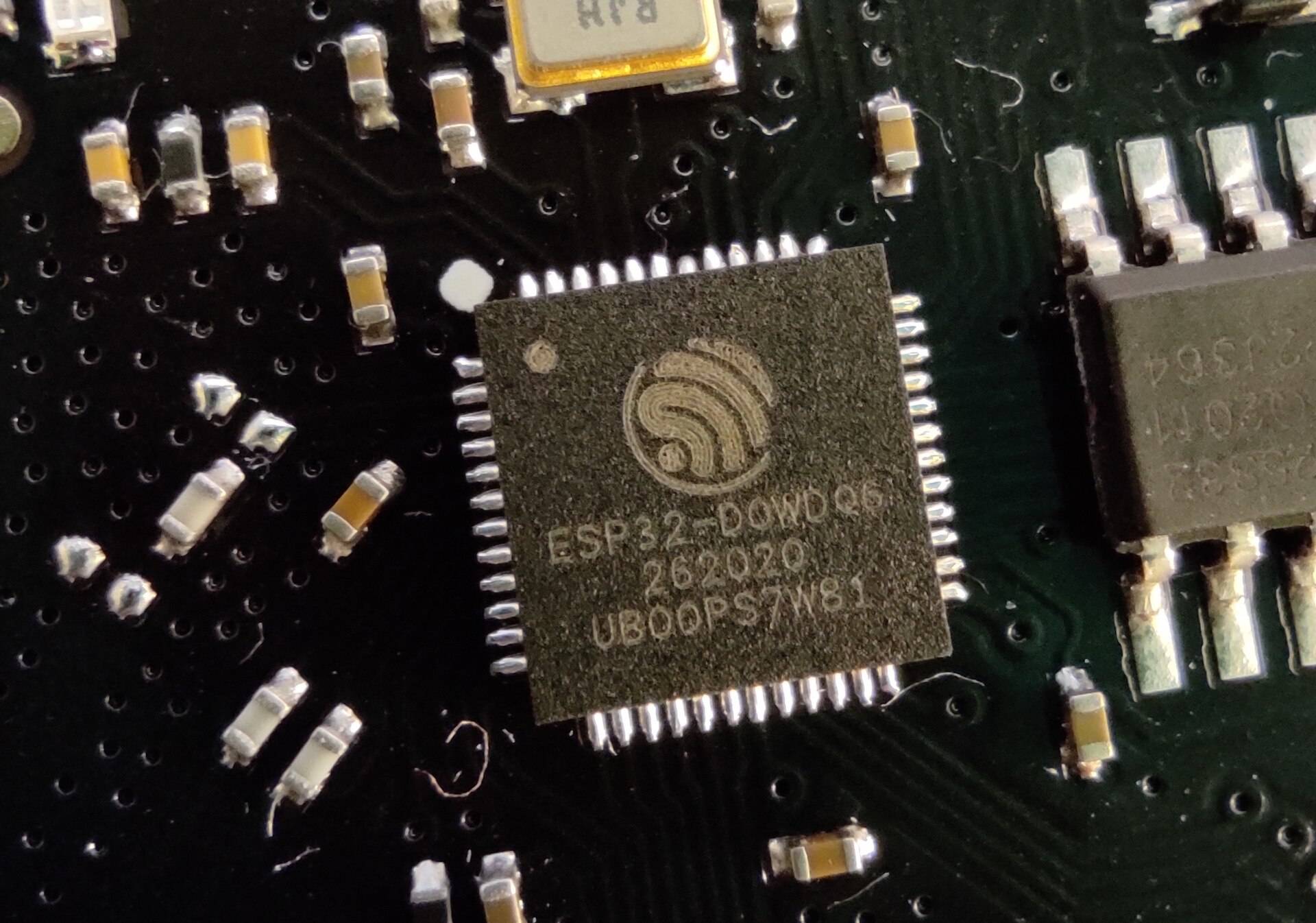

Typical chips here are Arm Cortex-M microcontrollers, the ESP32 and the RP2040: a few hundred KB of SRAM and a few MB of flash each.

The split matters. Flash holds the model: the weights are baked into the firmware like any other constant data. SRAM holds the working data while the model runs: the input, and the intermediate results (activations) passed from layer to layer. Both are tiny, so the models are tiny too: tens of thousands to a few million parameters, stored as 8-bit integers and run by TensorFlow Lite for Microcontrollers.

params

50K to 5M

precision

INT8

1 byte per parameter

runtime

TFLite Micro

power

milliwatts

months on a battery

paper Open image full size

What can a model this small do? It cannot chat. It listens or watches for one specific thing:

• Wake word Listens for a single phrase and ignores everything else.
• Vibration Spots the signature a factory motor shows before a bearing fails.
• Person in frame A tiny camera model answers one question: is someone there?

The chip spends almost all of its life asleep. It wakes, runs the model in a few milliseconds, and goes back to sleep, drawing milliwatts. It sends only the answer, not the raw data. A few bytes instead of a constant audio stream.

Getting a model this small starts on a normal computer: train it, then quantize it to 8-bit integers.

# Tier 1: shrink a trained Keras model to 8-bit integers for a microcontroller
import tensorflow as tf

converter = tf.lite.TFLiteConverter.from_keras_model(model)
converter.optimizations = [tf.lite.Optimize.DEFAULT]
converter.representative_dataset = representative_audio_samples   # calibrates int8 ranges
converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS_INT8]
converter.inference_input_type = tf.int8
converter.inference_output_type = tf.int8

open("wake_word.tflite", "wb").write(converter.convert())
# then:  xxd -i wake_word.tflite > model_data.cc   (a C array you compile into flash)

Then the model is compiled into the firmware. Look at kArenaSize: that is all the working memory this model gets.

// Tier 1: a wake-word model on a microcontroller (TensorFlow Lite for Microcontrollers)
#include "tensorflow/lite/micro/micro_interpreter.h"
#include "tensorflow/lite/micro/micro_mutable_op_resolver.h"
#include "model_data.h"                 // g_model[]: the .tflite file, stored in flash

constexpr int kArenaSize = 20 * 1024;   // all working memory: 20 KB of SRAM
alignas(16) static uint8_t tensor_arena[kArenaSize];
constexpr int kYes = 2;                 // output index of the "yes" class
static tflite::MicroInterpreter* interpreter;

void setup() {
  const tflite::Model* model = tflite::GetModel(g_model);
  static tflite::MicroMutableOpResolver<4> resolver;
  resolver.AddDepthwiseConv2D();
  resolver.AddFullyConnected();
  resolver.AddSoftmax();
  resolver.AddReshape();
  static tflite::MicroInterpreter instance(model, resolver, tensor_arena, kArenaSize);
  interpreter = &instance;
  interpreter->AllocateTensors();
}

void loop() {
  // fill interpreter->input(0)->data.int8 with ~1 s of audio features
  interpreter->Invoke();                                  // a few milliseconds
  int8_t yes = interpreter->output(0)->data.int8[kYes];   // send only this answer
}

Multiply the parameters by about a thousand and you stop listening for one word. You start writing code.

Tier 2 is your own computer. Model files run from about half a gigabyte to 16 GB: language models with 1 to 14 billion parameters, such as Gemma, Phi-3 mini, Llama 3 8B and Qwen 2.5.

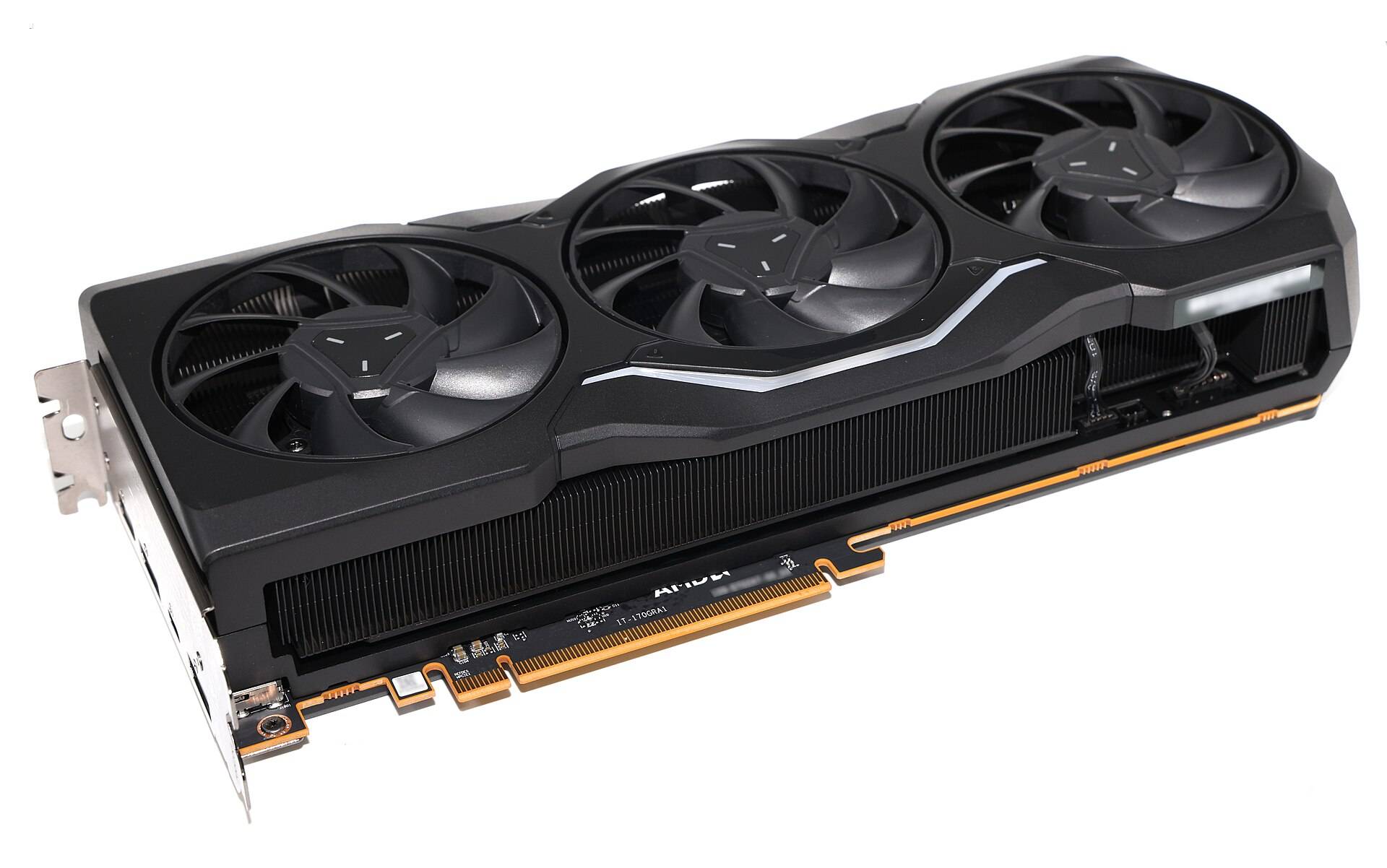

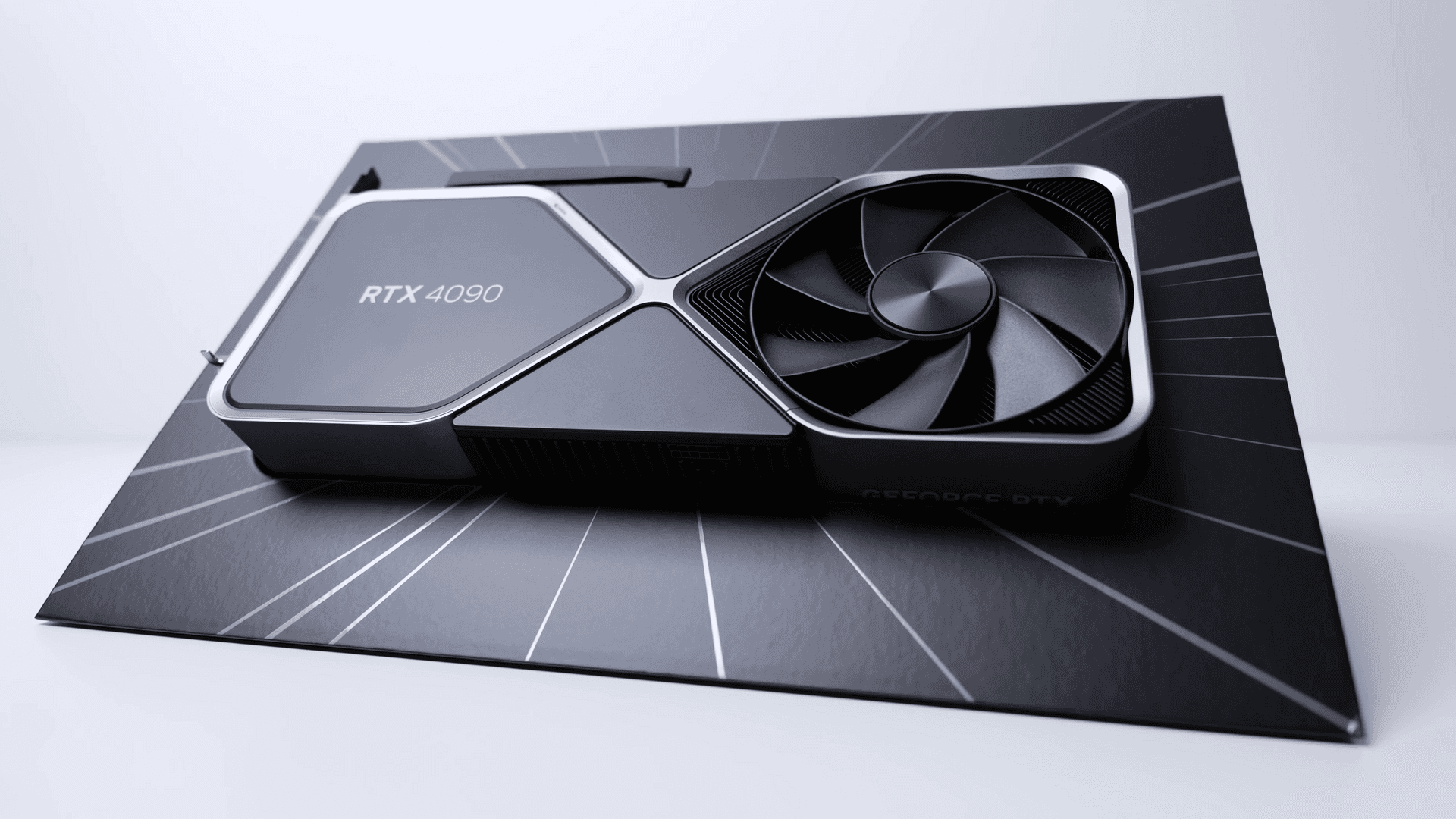

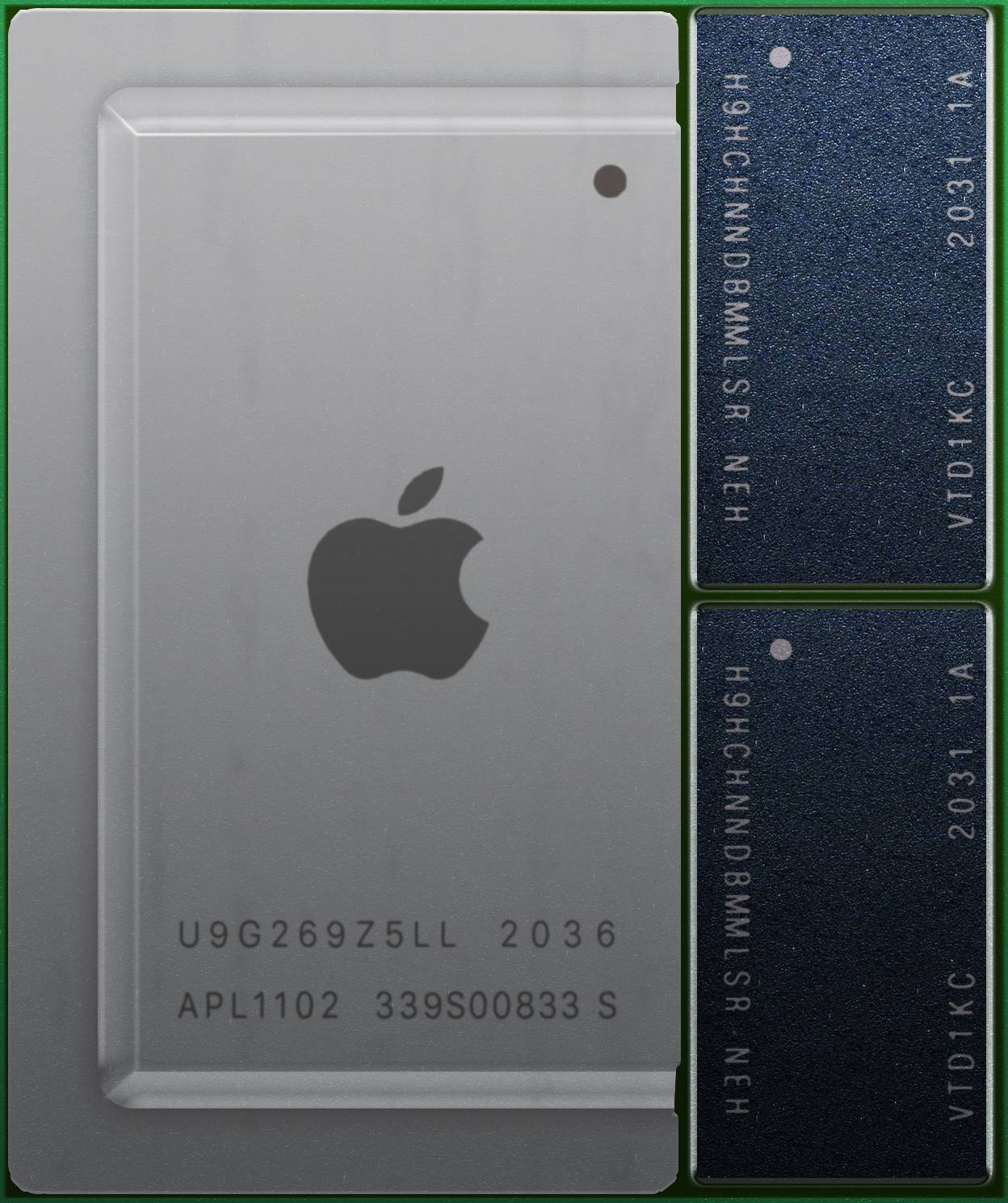

The hardware is a laptop or a desktop. A gaming GPU like the RTX 4090 or 5090 has 24 to 32 GB of its own fast memory, called VRAM. Apple silicon Macs are different: CPU and GPU share one pool of unified memory, anywhere from 16 to 128 GB, so a Mac can hold models that do not fit on any single gaming card.

Models here almost always run at 4-bit, packed into a file format called GGUF, through tools like llama.cpp and Ollama. Getting one running takes a single command:

# Tier 2: run an 8B model on your own machine, fully offline
ollama run llama3.1:8b            # pulls a ~4.9 GB 4-bit build, then chats

# or with llama.cpp directly: quantize to 4-bit GGUF, offload all layers to the GPU
llama-quantize Llama-3.1-8B-F16.gguf Llama-3.1-8B-Q4_K_M.gguf Q4_K_M
llama-cli -m Llama-3.1-8B-Q4_K_M.gguf -ngl 99 -p "Explain VRAM in one line"

Why 4.9 GB and not exactly 4? Real 4-bit formats keep a little extra per block of weights (scales, and a few layers kept at higher precision), so they land a bit above 4 bits per parameter. The formula gets you within a gigabyte, which is all you need to pick hardware.

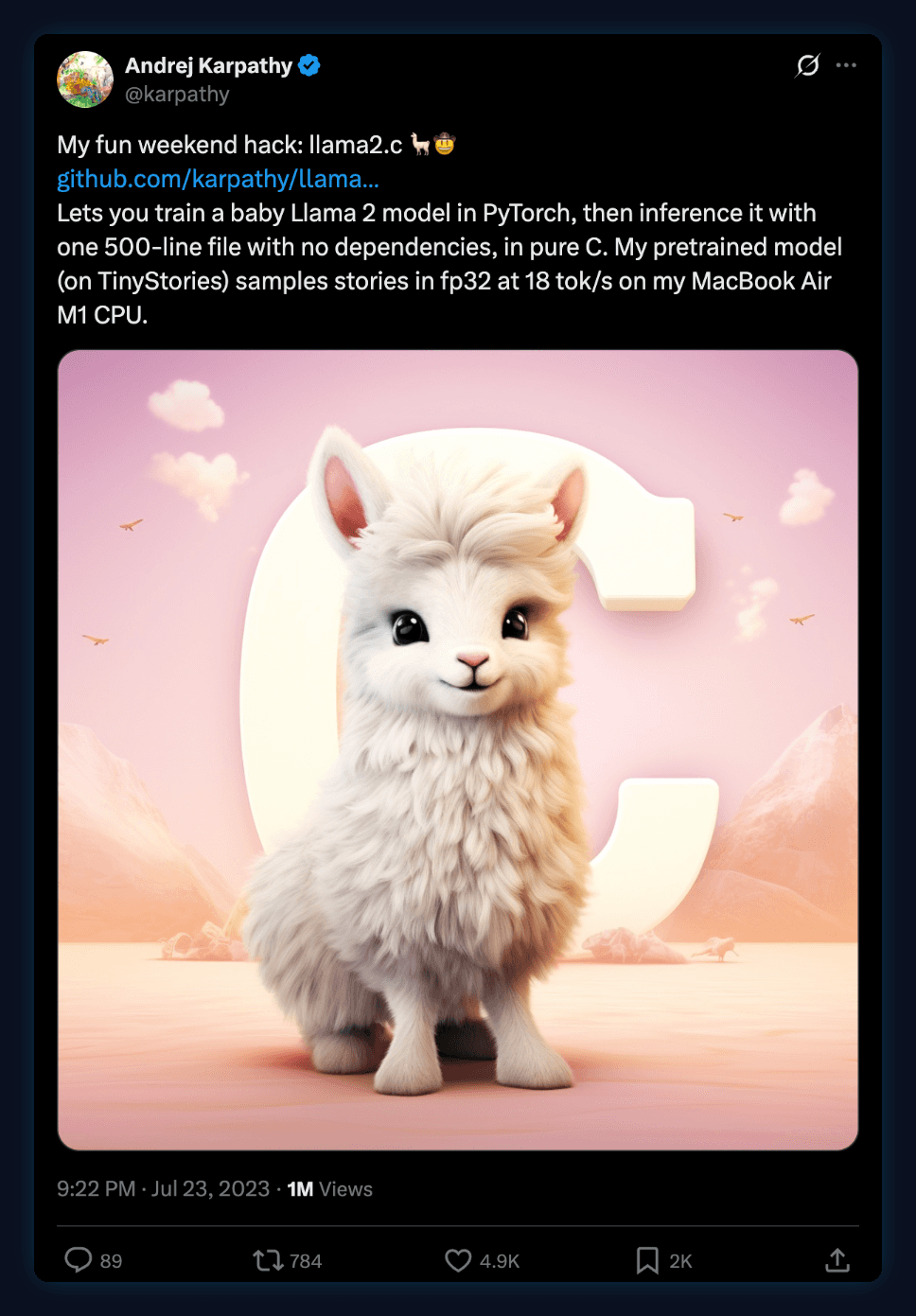

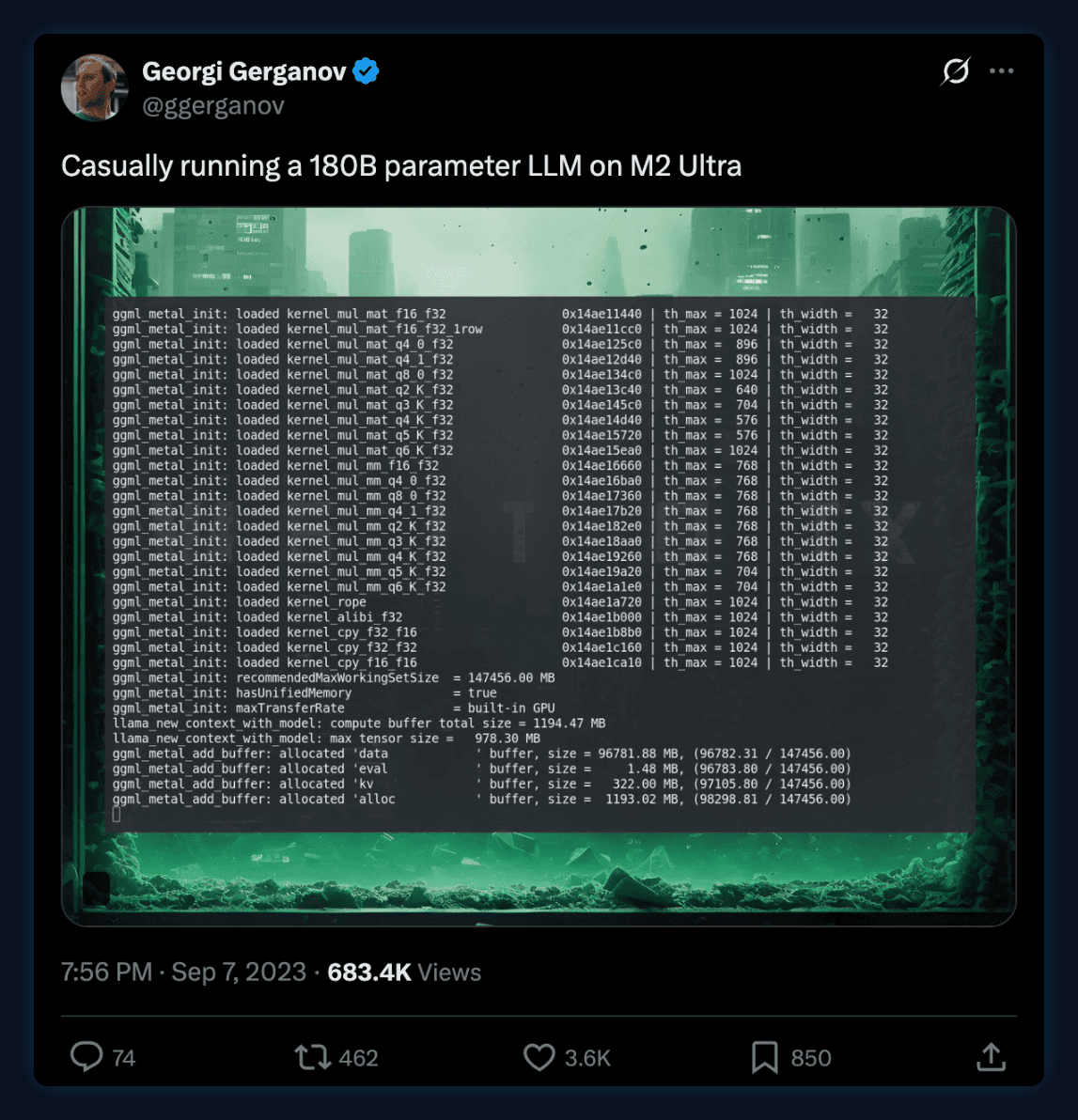

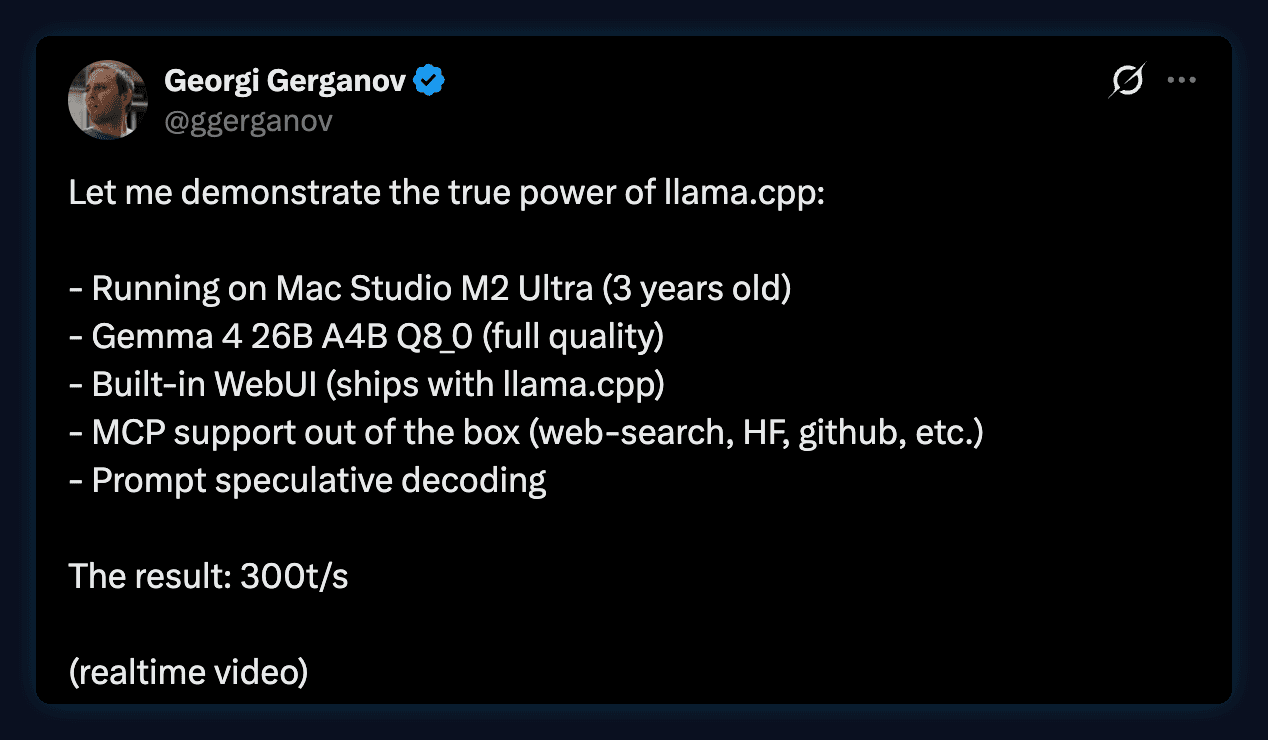

The ceiling of Tier 2 is higher than most people think:

tweet Open image full size

tweet Open image full size

tweet Open image full size

What can a Tier 2 model actually do? Much more than classify:

• Chat assistant A private assistant that answers questions.
• Code copilot + tool calling Writes code and decides which function to call.
• Whisper Turns speech into text.
• Screenshot reading Small vision-language models read what is on screen.
• Image generation Stable Diffusion draws a picture in seconds.

speed

100+ tok/s

Llama 3 8B, 4-bit, RTX 4090

format

GGUF 4-bit

network

offline

your data never leaves your desk

On an RTX 4090, an 8B model at 4-bit writes well over 100 tokens per second. And all of it runs with no internet at all. Your data never leaves your desk.

Now try it yourself. Pick a model and a precision, and see which machine it needs:

Now try a 70B model at full 16-bit quality. 140 GB. No gaming card on Earth holds that.

Tier 3 is the single server: dense models with 30 to 70 billion parameters, and mixture-of-experts models we will meet in a minute. A 70B model in 16-bit is 140 GB. Even two gaming cards together only hold 48 GB, which is enough at 4-bit and nowhere near enough at full quality.

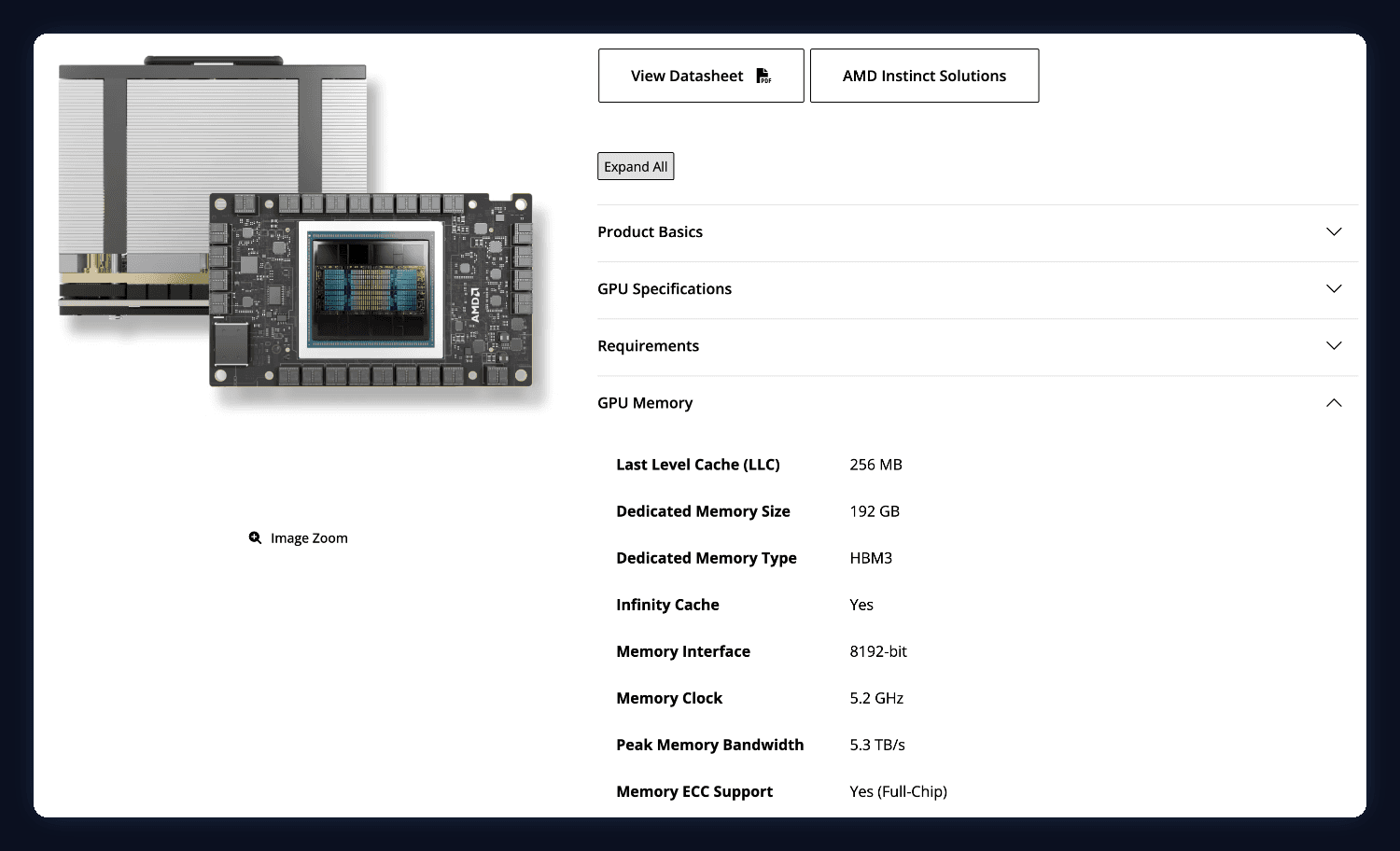

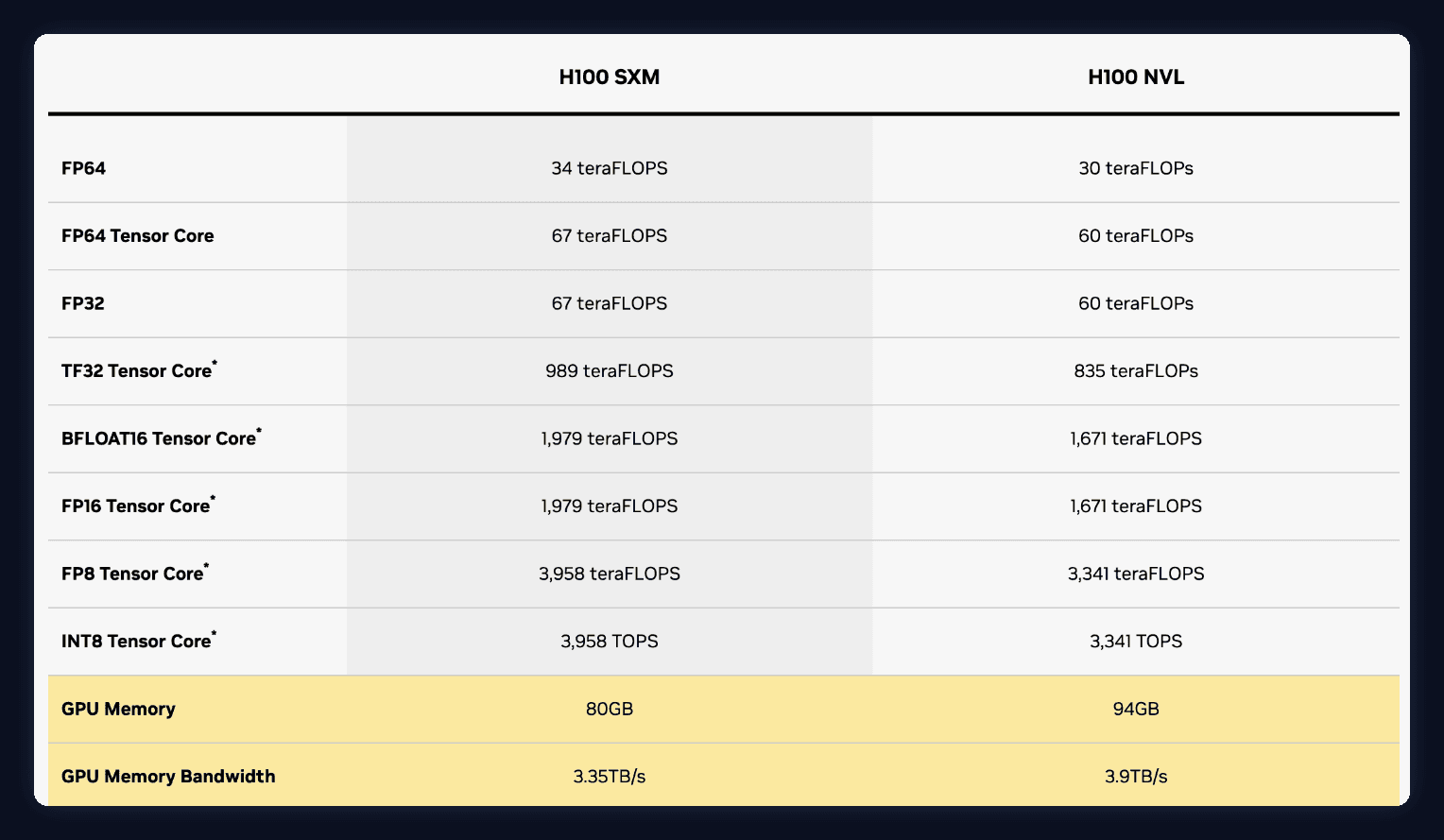

For full quality you need data-center GPUs. These use HBM, high bandwidth memory: memory stacked right next to the chip, so the GPU can read it at terabytes per second.

spec sheet Open image full size

spec sheet Open image full size

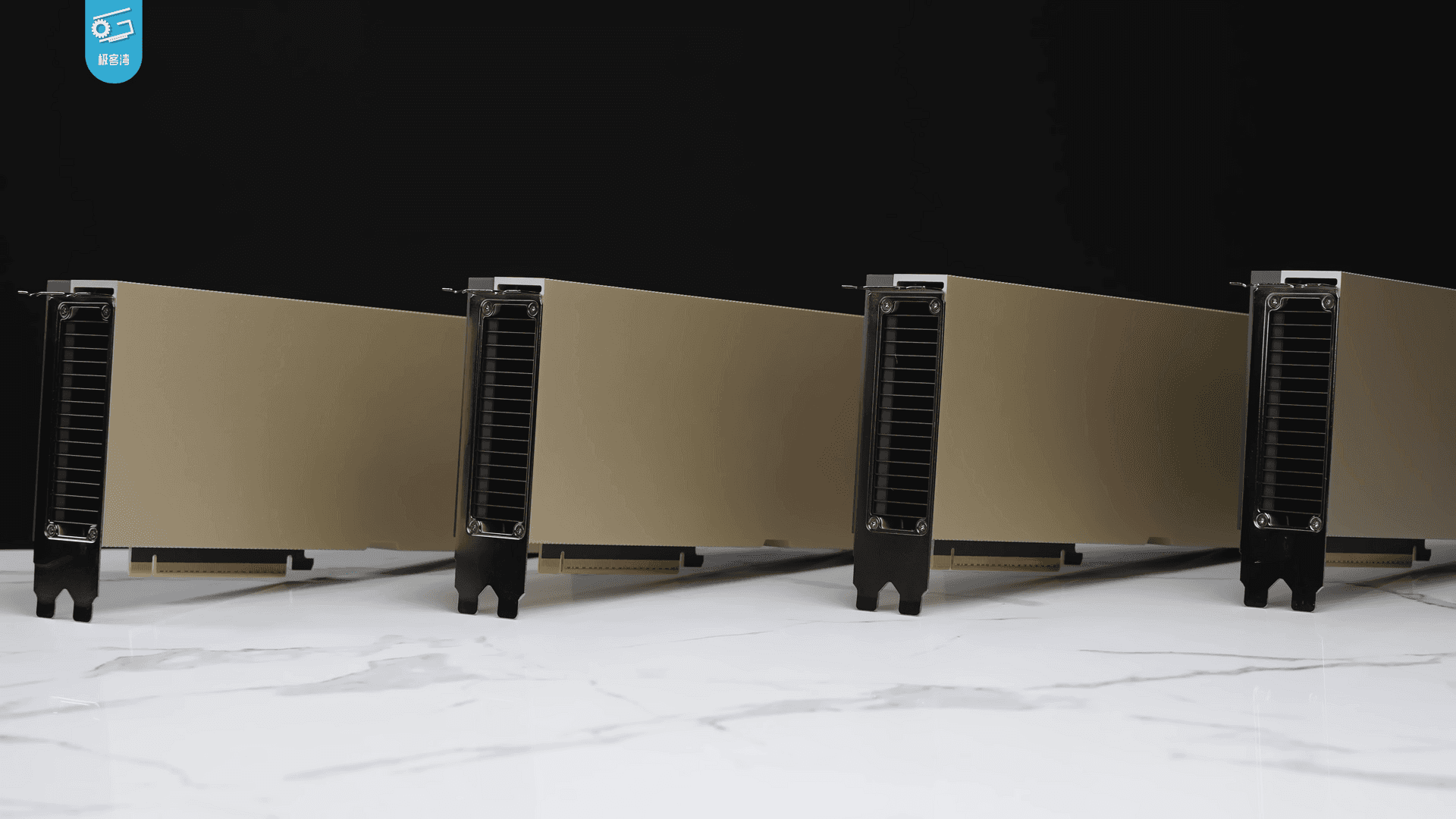

An MI300X holds a 70B model at 16-bit on one chip, with room to spare. On H100s you split it across two cards. At this tier the model also serves many users at once, which needs a serving engine such as vLLM, TensorRT-LLM or Text Generation Inference:

# Tier 3: serve a 70B model to many users with vLLM
# 140 GB of BF16 weights: one MI300X (192 GB), or split across two H100s (2 x 80 GB)
vllm serve meta-llama/Llama-3.1-70B-Instruct --tensor-parallel-size 2

# Mixture of experts: 47B stored, ~13B used per token
vllm serve mistralai/Mixtral-8x7B-Instruct-v0.1 --tensor-parallel-size 2

Why serving many users needs spare memory: the KV cache

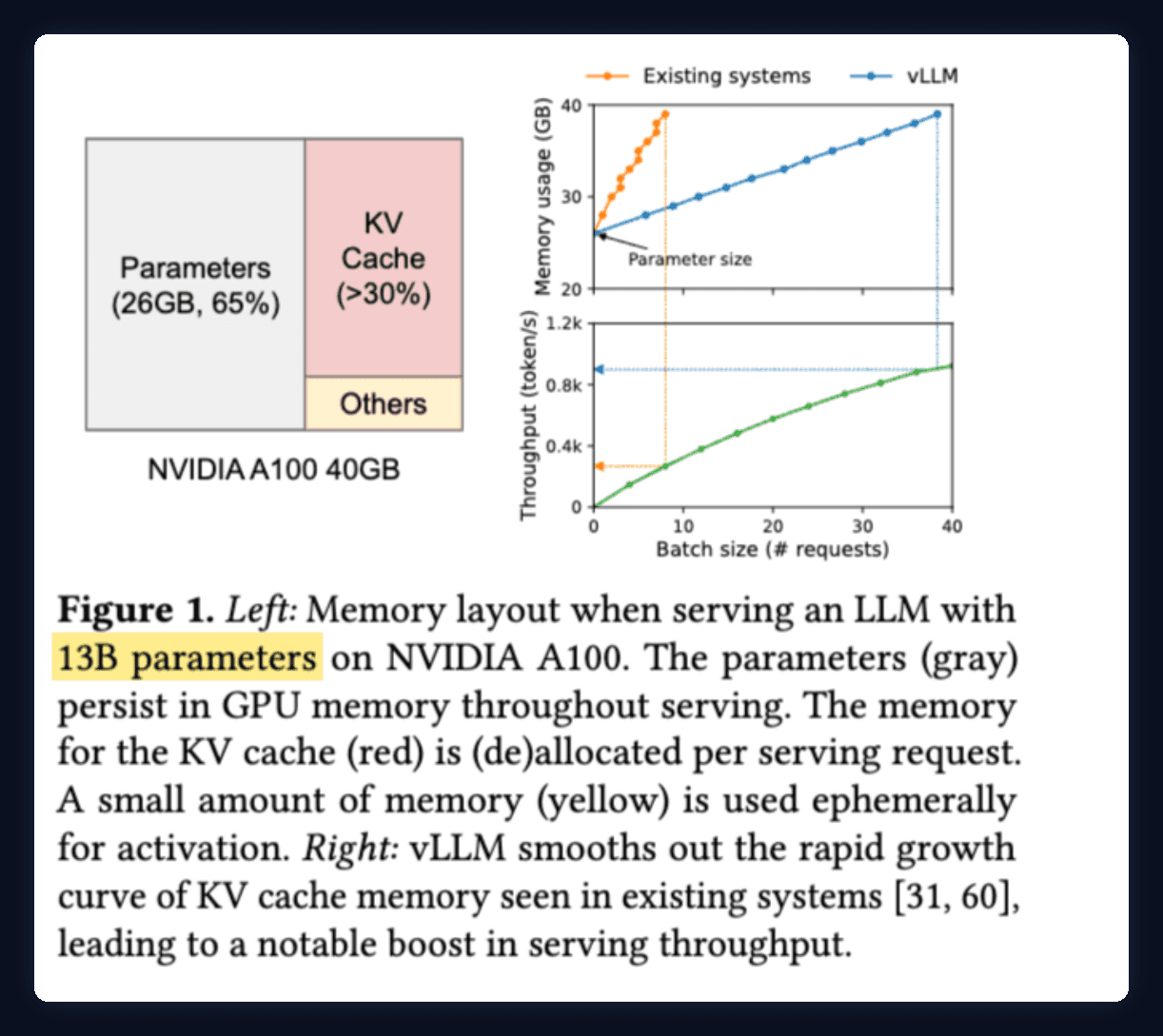

While a chat model writes, it keeps a memory of every token so far: the KV cache. It grows with the length of the conversation, and every user has their own. On a busy server it can rival the weights themselves.

paper Open image full size

The size follows its own little formula:

"""Working memory that grows with context: the KV cache.
kv_bytes = 2 (K and V) x layers x kv_heads x head_dim x tokens x bytes_per_value
"""
def kv_cache_gb(layers, kv_heads, head_dim, tokens, batch=1, bytes_per_value=2):
    return 2 * layers * kv_heads * head_dim * tokens * batch * bytes_per_value / 1e9

# Llama 3 70B: 80 layers, 8 KV heads (GQA), head_dim 128
for ctx in (8_192, 32_768, 131_072):
    print(f"Llama 3 70B, {ctx:>7,} tokens, 1 user : {kv_cache_gb(80, 8, 128, ctx):6.1f} GB of KV cache")
print(f"Llama 3 70B, 8,192 tokens, 32 users: {kv_cache_gb(80, 8, 128, 8192, batch=32):6.1f} GB")

python kv_cache_calculator.py

Llama 3 70B,   8,192 tokens, 1 user :    2.7 GB of KV cache
Llama 3 70B,  32,768 tokens, 1 user :   10.7 GB of KV cache
Llama 3 70B, 131,072 tokens, 1 user :   42.9 GB of KV cache
Llama 3 70B, 8,192 tokens, 32 users:   85.9 GB

About 2.7 GB per user at 8K tokens, about 43 GB for one user at 128K. Thirty-two users at 8K need 86 GB on top of the 140 GB of weights. That is why "it fits" is not the same as "it serves".

Mixture of experts: big memory, small compute#

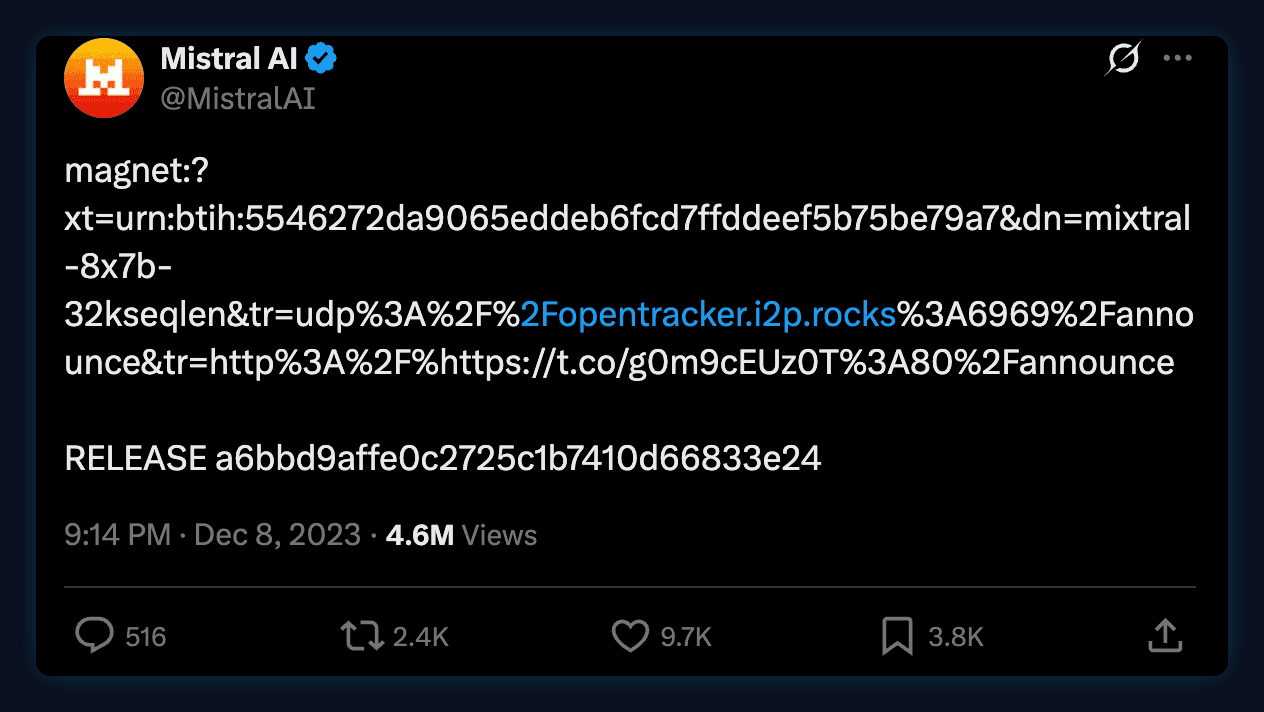

There is a different kind of model at this tier. A mixture of experts (MoE) model has many specialist blocks, the experts, and a small router that sends each token to just a couple of them.

paper Open image full size

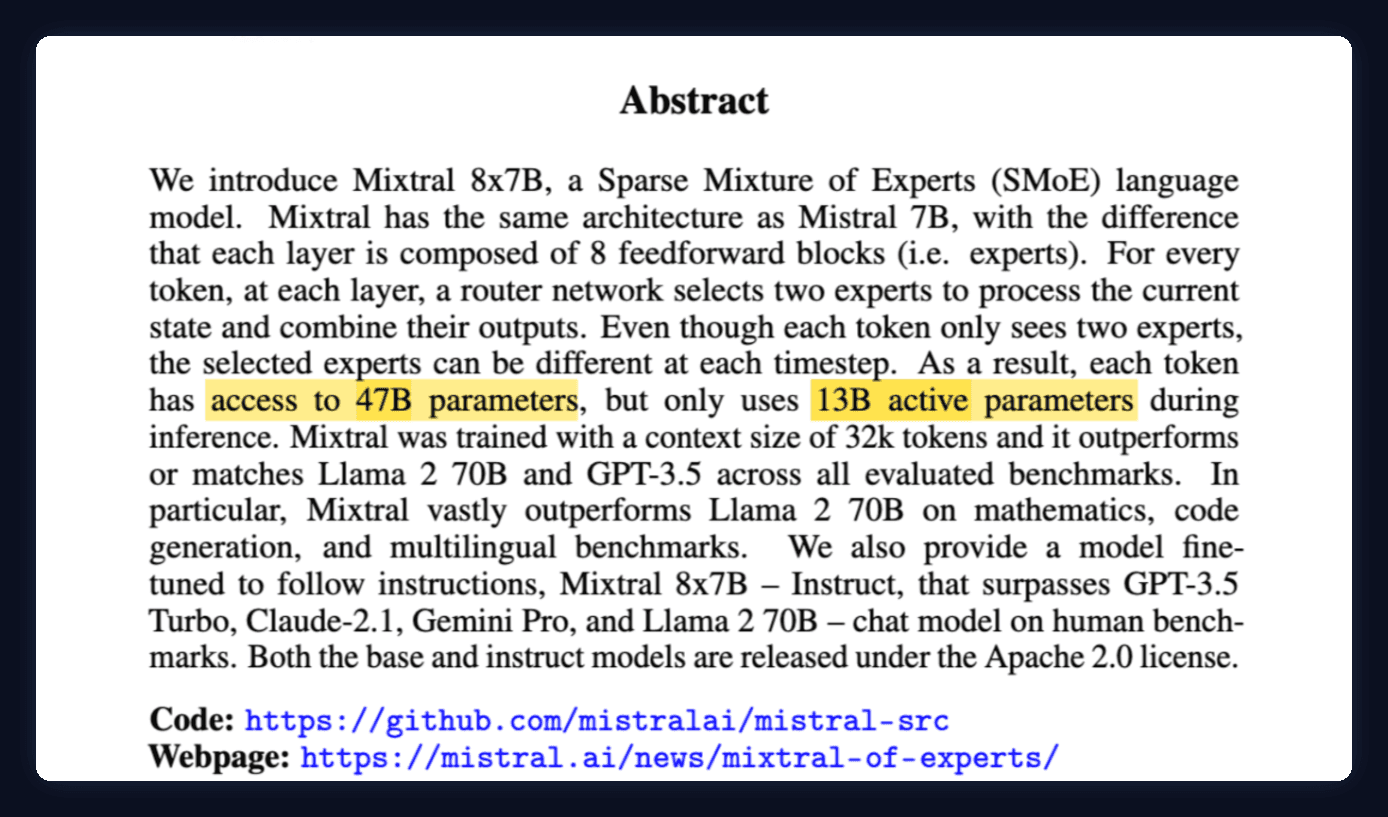

Memory must hold all 47 billion. Speed depends on the 13 billion that are used. That is the whole MoE trade: you pay for the total in memory, and for the active part in compute.

tweet Open image full size

With 80 to 192 GB to play with, models can refactor a large codebase and write its tests, and read long documents and video frames in one go. Protein structure models like AlphaFold run on these GPUs too.

• Repo refactor
• Test generation
• Long documents
• Video frames
• Protein structures

So what happens when a model is too big for any single chip ever made?

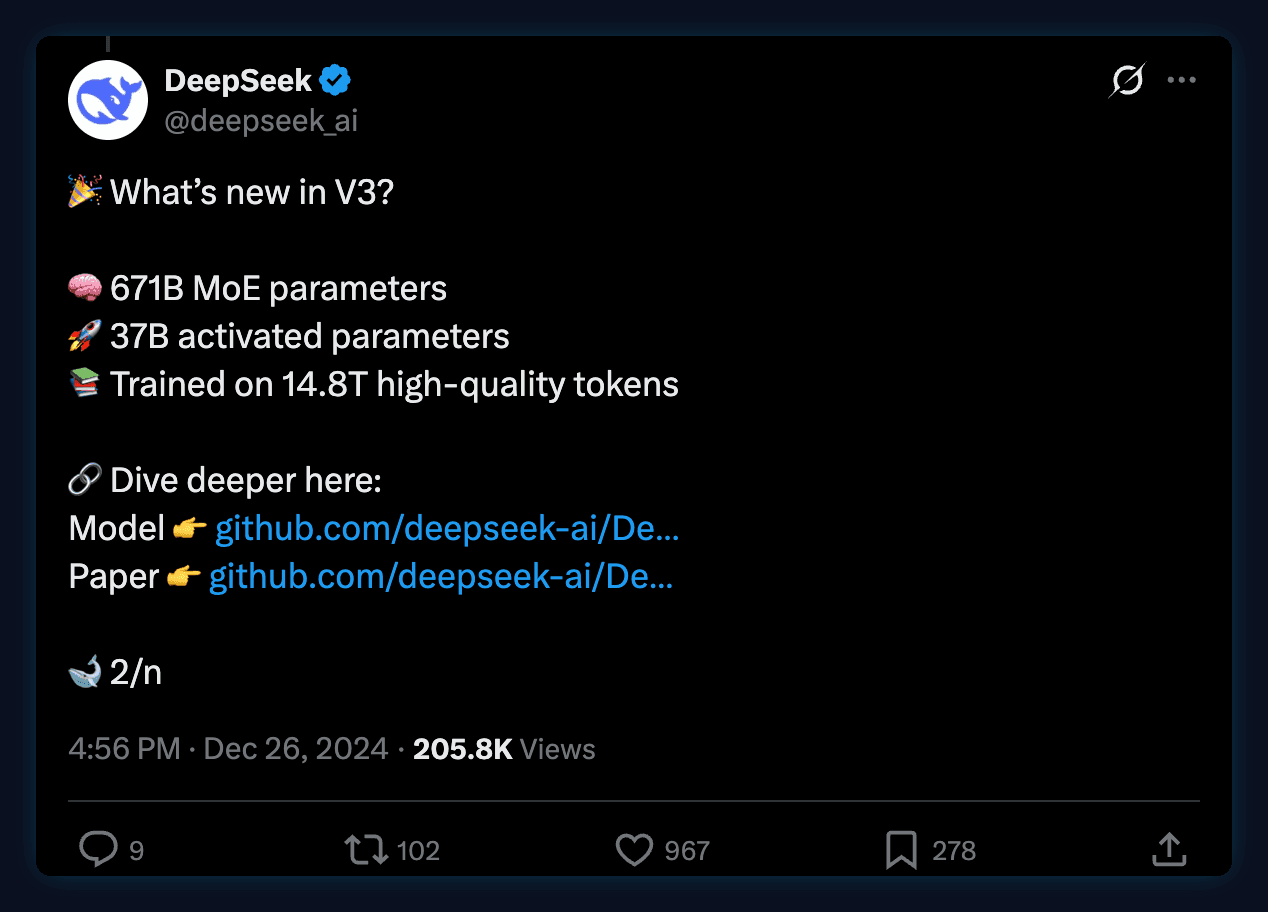

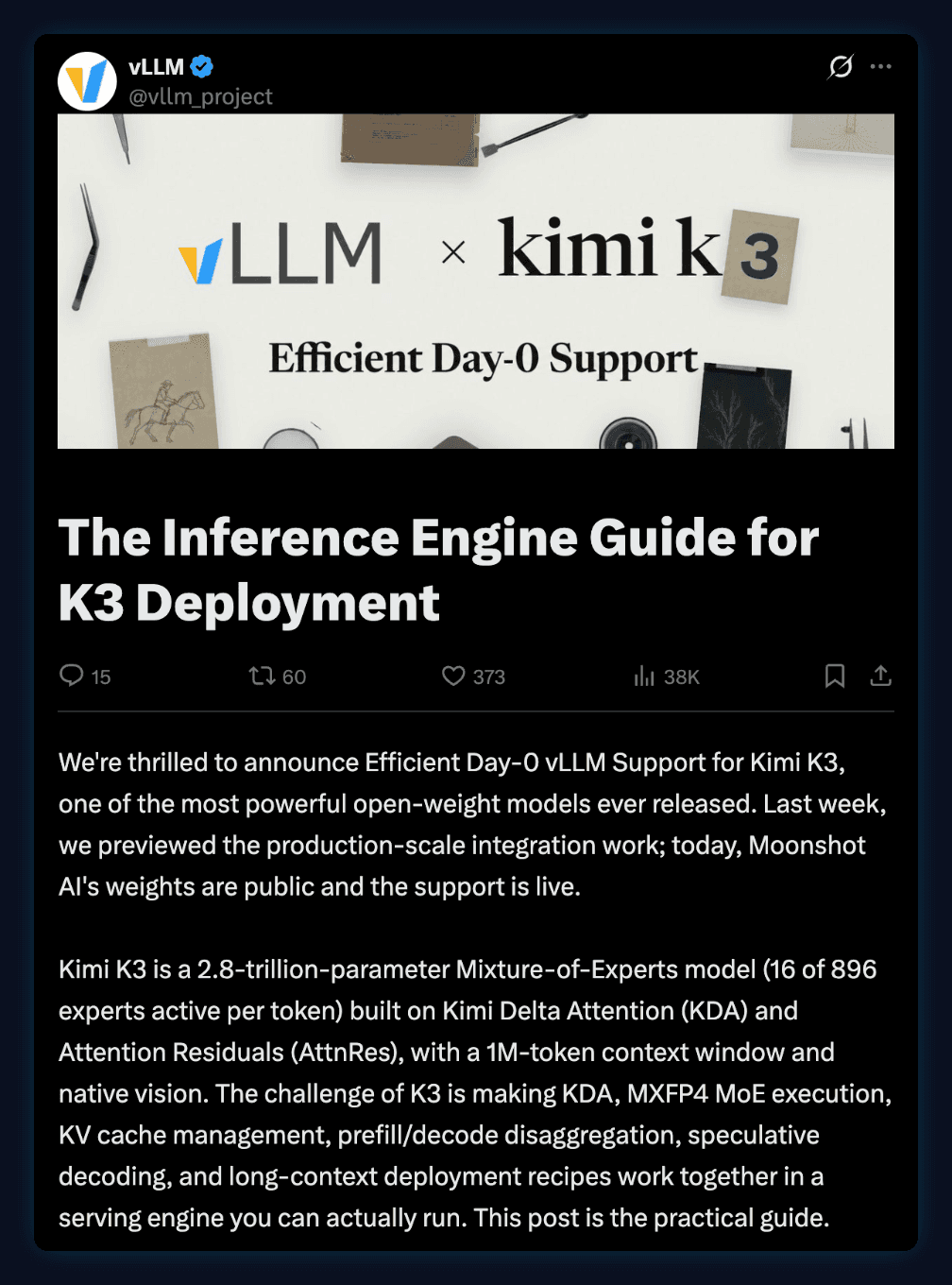

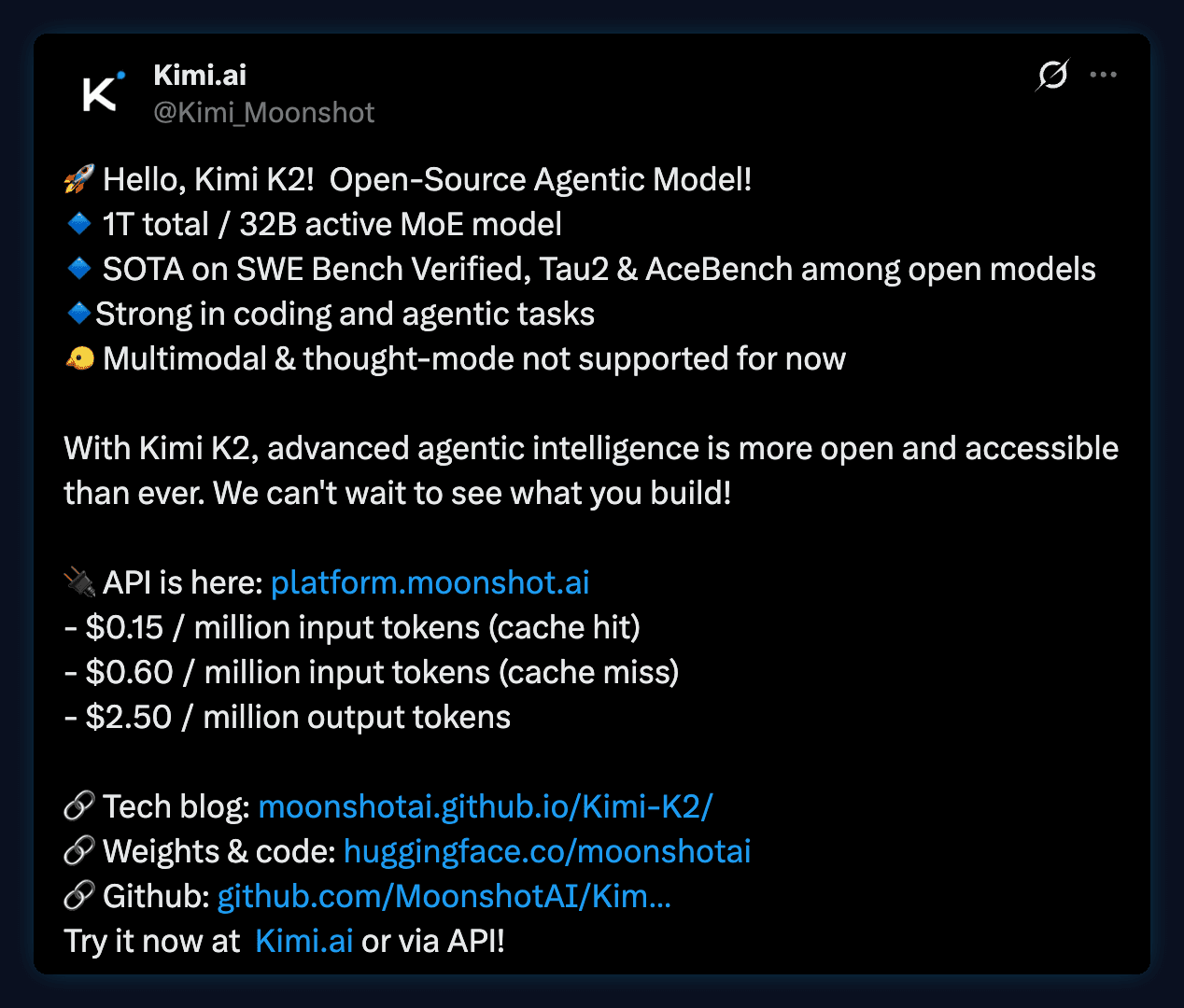

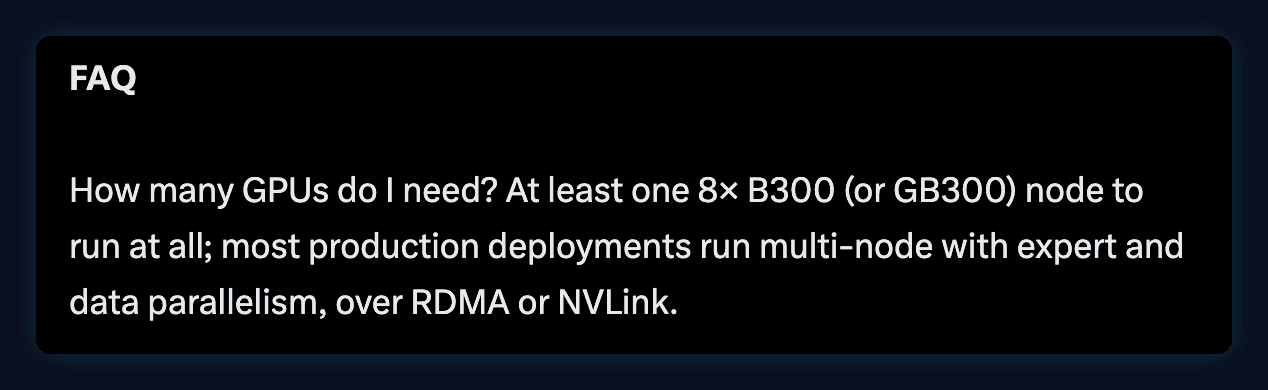

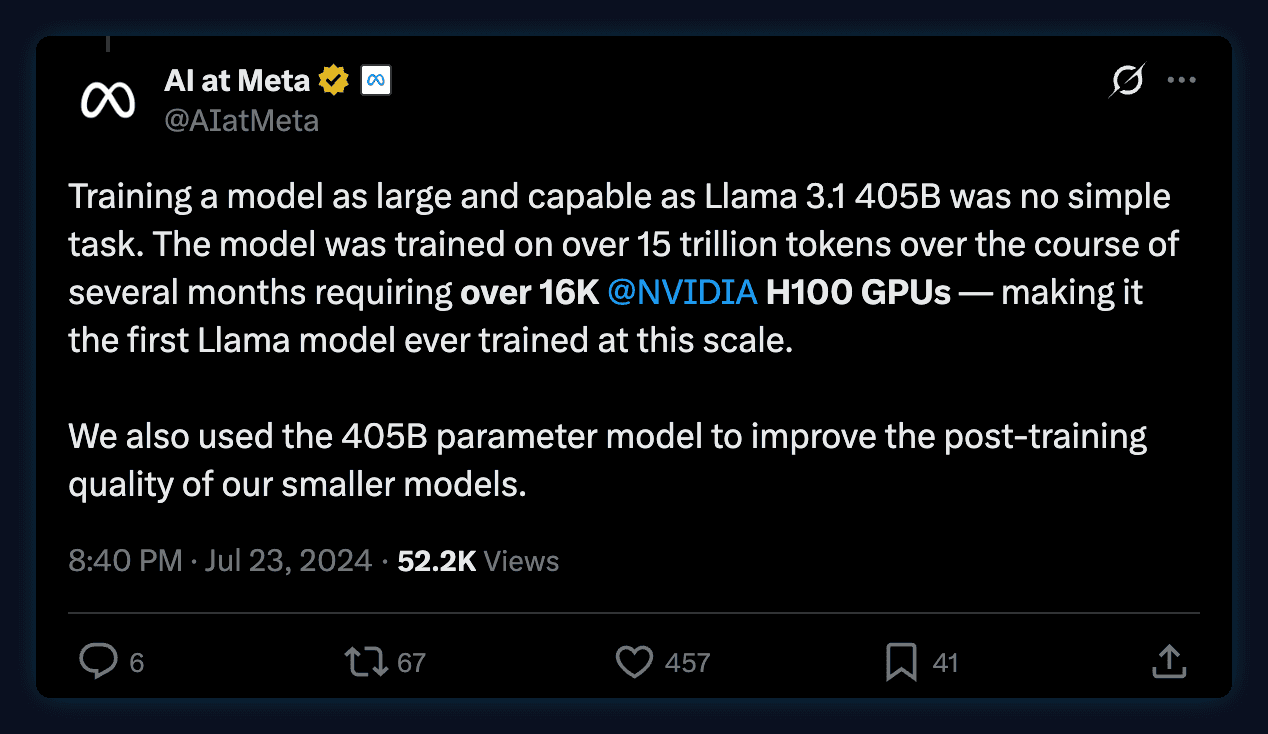

Tier 4 is the cluster. Llama 3.1 405B is a dense model: at 16-bit its weights alone are 810 GB. Mixture-of-experts models go further. DeepSeek-V3 has 671 billion parameters. Kimi K2 has one trillion, which is 2 TB at 16-bit. Add the working memory for long conversations, and you pass 2.5 TB.

tweet Open image full size

paper Open image full size

tweet Open image full size

tweet Open image full size

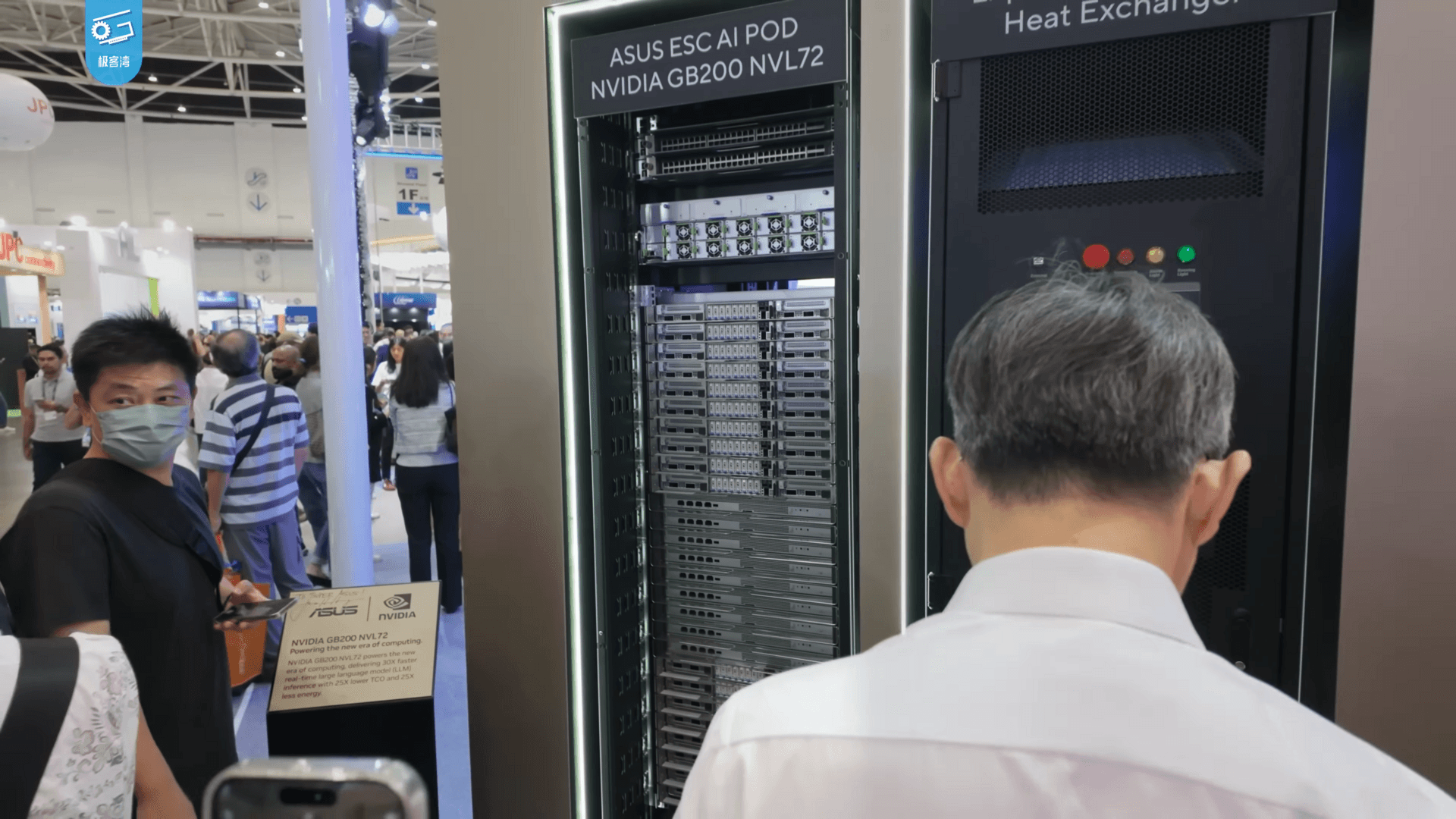

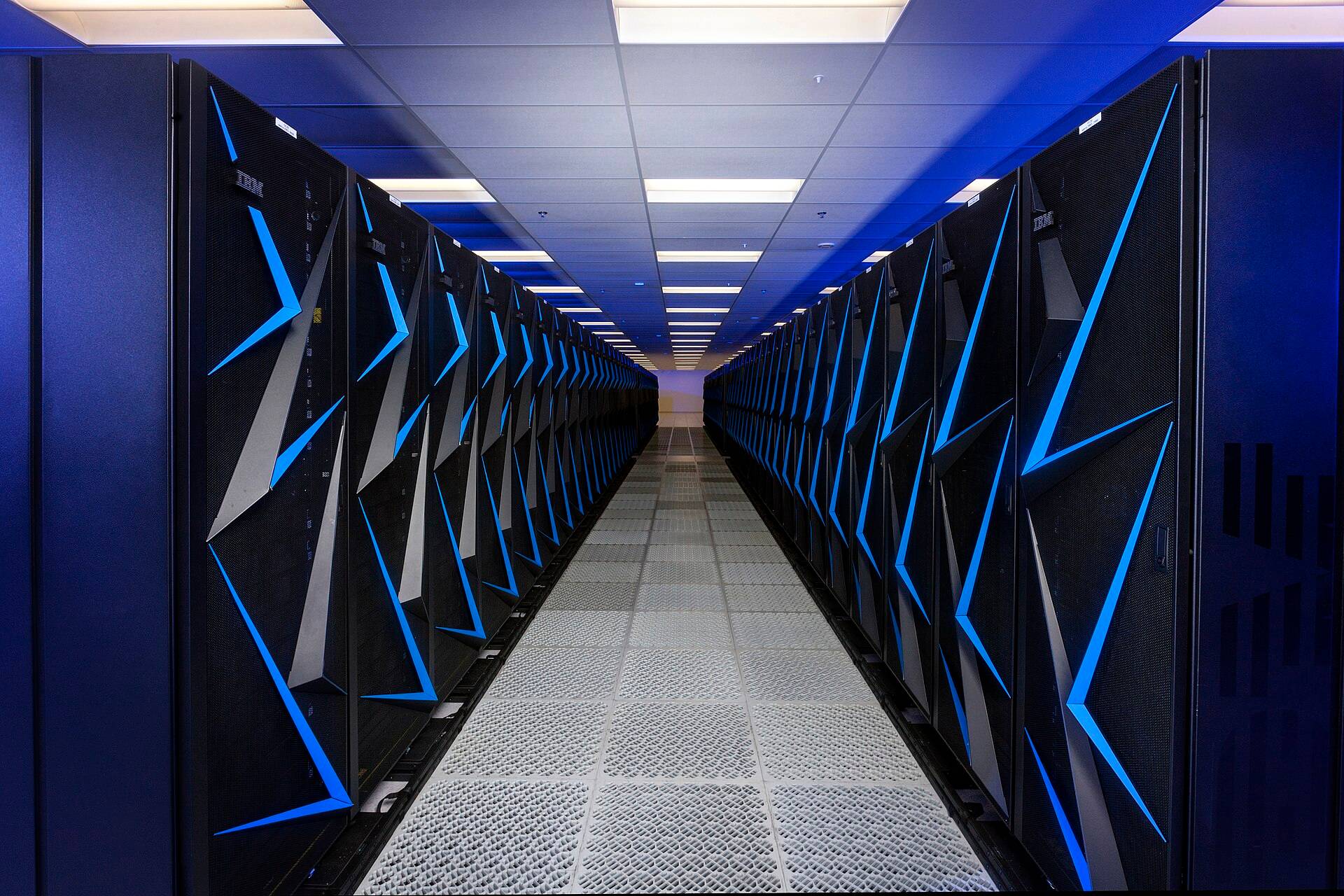

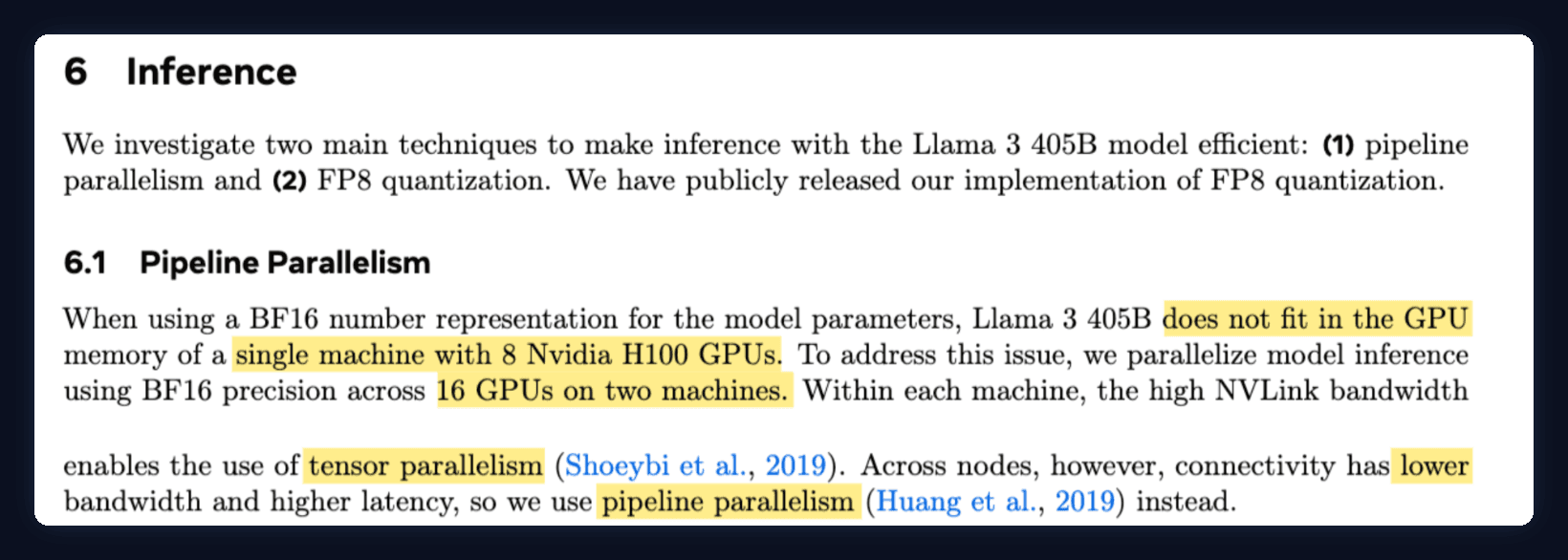

No single chip on Earth holds that. So the model is split across a server with eight GPUs: eight H100s give 640 GB, eight H200s give about 1.1 TB, eight MI300X give about 1.5 TB.

Inside one server, the 8 GPUs are wired to each other with very fast links, so they can act like one big GPU. Slice the 810 GB model 8 ways and each H100 must hold about 101 GB, more than its 80 GB. Slice it 16 ways across two servers and each GPU holds about 51 GB. That is exactly what Meta did.

The wires matter as much as the chips#

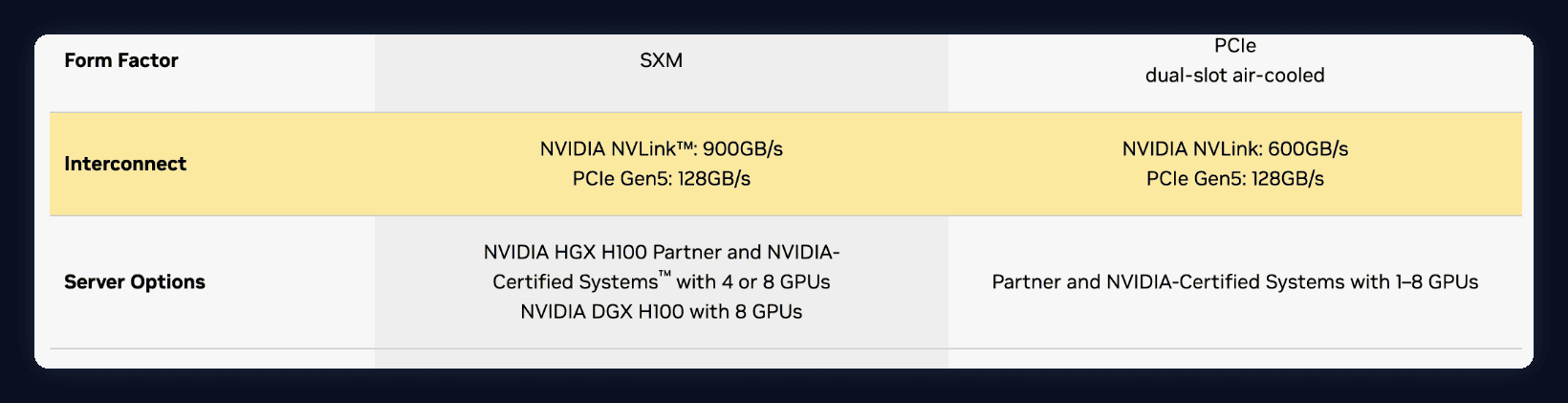

Splitting a model means the GPUs must talk constantly. Inside one server, NVIDIA GPUs connect through NVLink at about 900 GB/s each. AMD uses Infinity Fabric.

spec sheet Open image full size

Between servers, traffic goes over InfiniBand or Ethernet with RDMA, at around 400 Gb/s per link. Watch the units: that is gigabits, not gigabytes. 400 Gb/s is 50 GB/s, an eighteenth of one H100's NVLink. So the split is planned around the slow link.

Three ways to split a model#

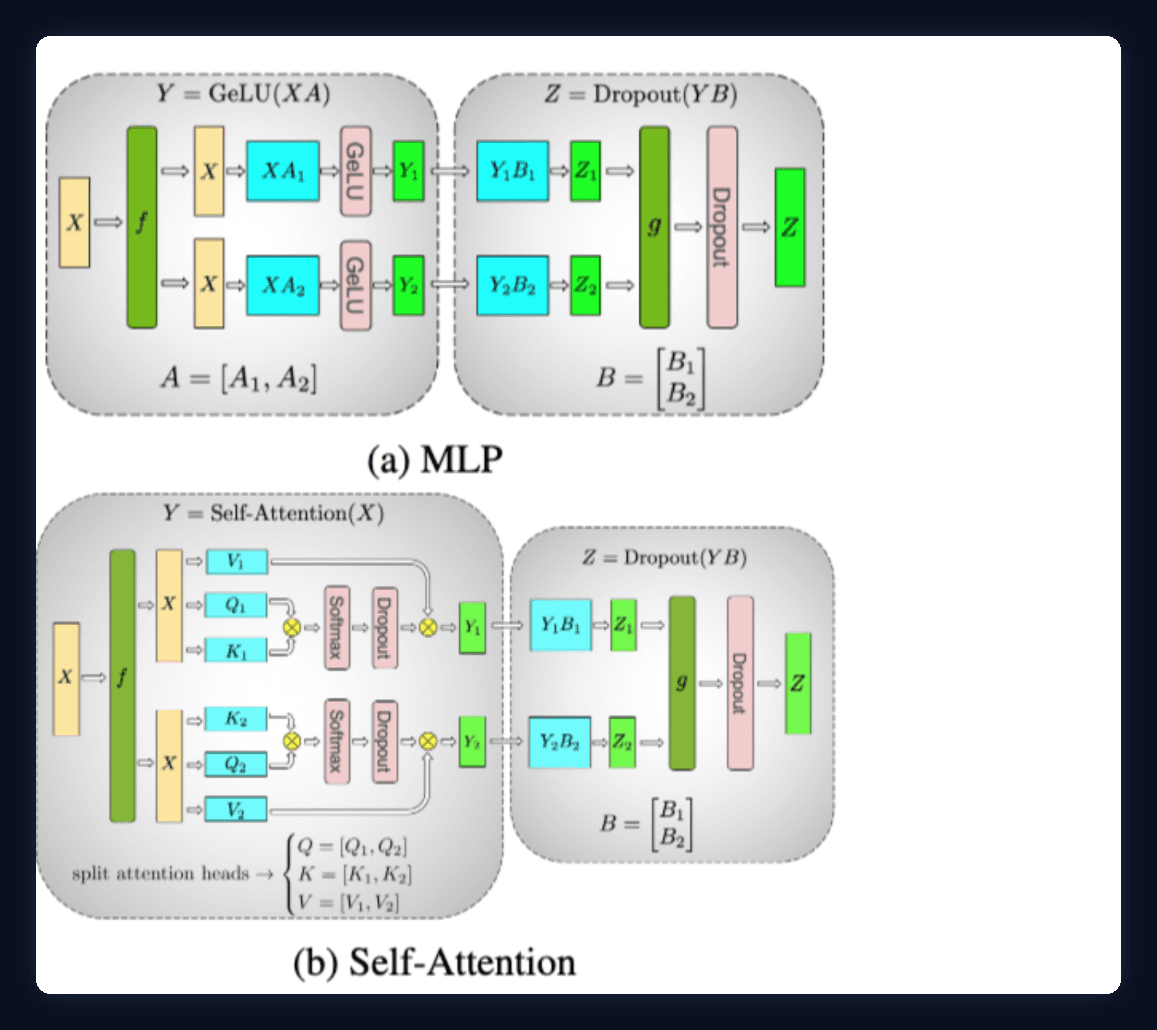

Tensor parallelism cuts every layer across the 8 GPUs in one server. It talks on every layer, so it stays on fast NVLink. Pipeline parallelism gives different layers to different servers, so only activations cross the slow link. Expert parallelism places different experts on different GPUs and sends each token to the GPU that holds its expert.

paper Open image full size

Engines like vLLM, and llm-d for orchestrating it on Kubernetes, run this split for you:

# Tier 4: models bigger than any single GPU, split across a node or two

# 405B in FP8 (~405 GB) fits one 8x H100 node: tensor parallel over NVLink
vllm serve meta-llama/Llama-3.1-405B-Instruct-FP8 --tensor-parallel-size 8

# 405B in BF16 (810 GB) needs two nodes: TP=8 inside each node, PP=2 across them
vllm serve meta-llama/Llama-3.1-405B-Instruct \
  --tensor-parallel-size 8 --pipeline-parallel-size 2

# MoE: put different experts on different GPUs, route each token to its expert
vllm serve deepseek-ai/DeepSeek-V3 --tensor-parallel-size 8 --enable-expert-parallel

What needs this much? Frontier models: the ones that reason step by step through a hard problem and check their own work, follow hours of video or hundreds of pages in one context, or generate video with large diffusion transformers spread over many GPUs.

• Step-by-step reasoning Working through hard problems and checking its own work.
• Long context Hours of video or hundreds of pages at once.
• Video generation Large diffusion transformers across many GPUs.

At this tier the cost is not only the chips. It is everything around them:

• GPUs
• Network
• Power
• Cooling

Honest limits of this map#

Every map simplifies. Here are the three places this one bends.

The whole ladder on one page#

So here is the whole ladder. Micro edge: kilobytes to a few megabytes, on microcontrollers, for wake words and sensors. Local desktop: up to 16 GB, on laptops and gaming GPUs, for chat, code, speech and images, offline. Single server: up to 140 GB, on H100 and MI300X, for many users, big codebases and long documents. Cluster: up to 2.5 TB, on many GPUs joined by fast links, for frontier reasoning and video.

AI is not one thing. Every choice is a balance of memory,bandwidth,power,precision.
